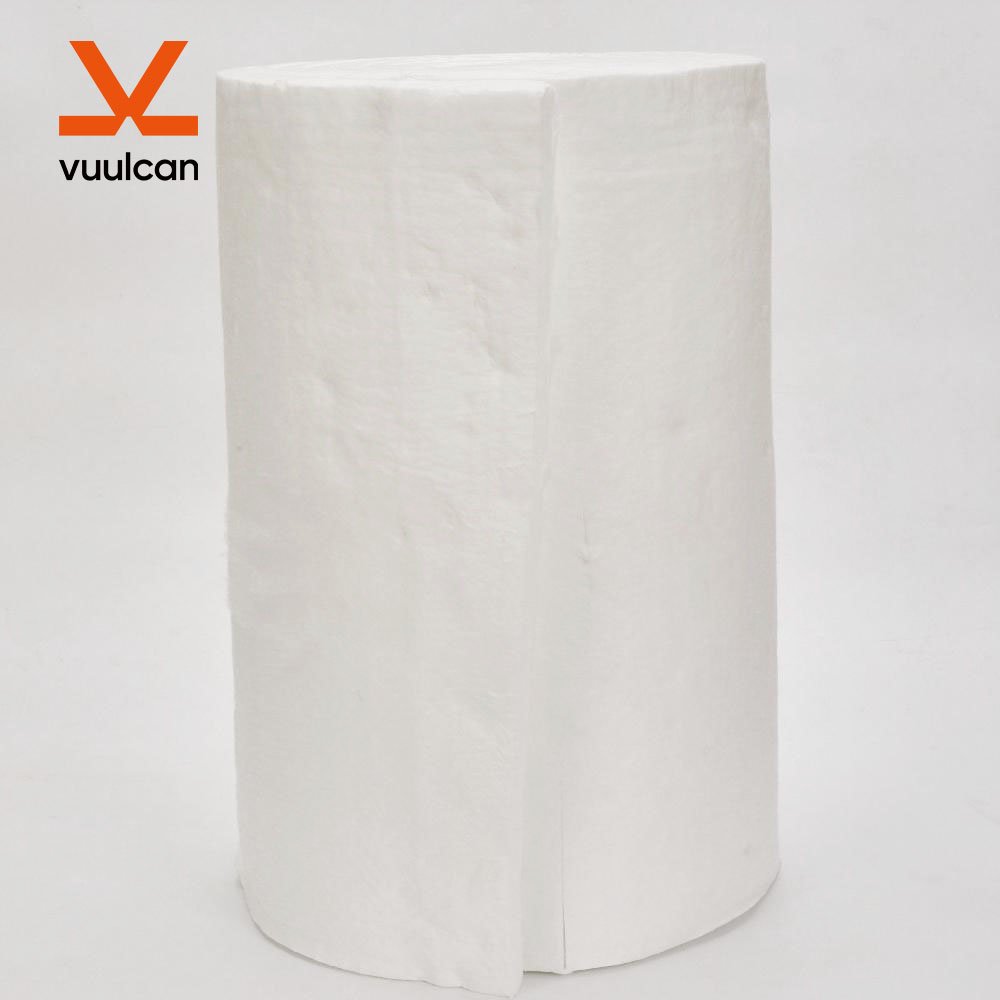

Ceramic Fiber Insulation Blanket

Technical functions of ceramic blankets:

1. Low thermal conductivity, low heat storage;
2. Excellent thermal stability and thermal shock resistance;
3. Excellent corrosion resistance;
4. Excellent heat insulation, fire resistance and processing functions;

1. Ceramic industry
   Insulation and sealing parts for kiln cars, continuous kiln and batch kiln
2. Steel industry
   Heat treatment and annealing furnaces, furnace door linings and seals, soaking pit covers and seals, furnace hot surface repair, reheating furnaces and ladle covers
3. Oil refining and petrochemicals
   Reformers and pyrolysis linings, pipe seals, gaskets and expansion joints, high-temperature pipes, pipe and turbine insulation, crude oil heater linings
4. Power generation
   Boiler insulation, boiler door, reusable turbine cover, expansion seal/pipe cover

The Technical Date of Our Ceramic Fiber Blankets:

Item	H Pure	H Alumina
Al2O3 (%)	47~49	52~55
Al2O3 + SiO2 (%)	99	99
Al2O3 + SiO2 + ZrO2 (%)	/	/
ZrO2 (%)	/	/
Fe2O3 (%)	0.2	0.2
Na2O + K2O (%)	0.2	0.2
Classification Temperature (℃)	1260	1350
Max Work Temperature (℃)	1200	1300
Density (kg/m3)	128	128
Rate of Liner (%) (24h, Density 128kg/m3)	-3(1100℃)	-3(1250℃)
Thermal Conductivity (w/m.℃) (Density 128kg/m3)	0.06(400℃)0.176(800℃)0.21(1000℃)	0.13(600℃)0.19(800℃)0.27(1000℃)
Tensile Strength (MPa) (Density 128g/m3)	0.08~0.12	0.08~0.12
Fiber Diameter	2.8-3.8μm
Size (mm)	7200*610*25mm, 3600*610*50mm
