Ceramic Fiber Board – vuulcanrefractory.cn

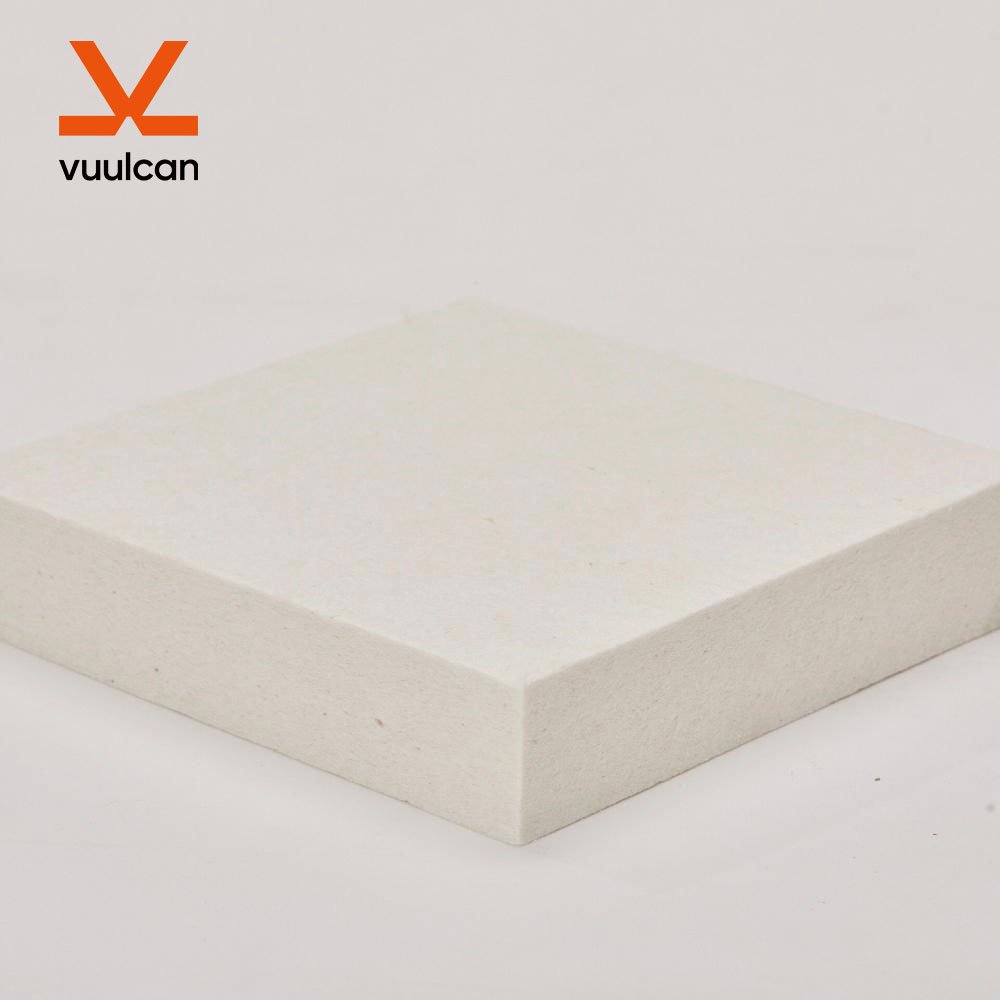

Description of Ceramic Fiber Board:

In addition to its hard texture, excellent toughness and strength, ceramic fiber board also has outstanding wind erosion resistance. Moreover, apart from being lightweight and not expanding when heated, it is convenient to install and easy to form or cut. It is an ideal energy-saving material for insulation equipment such as kilns and pipelines.

Technique Data：

Technique Data of Ceramic Fiber Board:

Item	Specification
	STD	HP	HA	HZ
Al₂O₃ %	≥45	≥45	≥52	32~33
Al₂O₃+SiO₂ %	97	99	99	/
ZrO₂ %	/	/	/	≥15
Fe₂O₃ %	≤1.0	0.2	0.2	0.2
K₂O+Na₂O %	≤0.5	0.2	0.2	0.2
Density, kg/m³	260/320	260/320	260/320	260/320
Permanent Linear Shrinkage, % After24hDensity 320 kg/m³	≤-3 1000℃	≤-3 1100℃	≤-3 1260℃	≤-3 1360℃
Thermal Conductivity, W/(m·K)Density 285kg/m³	0.085 400℃	0.085 400℃	0.085 400℃	0.085 800℃
	0.132 800℃	0.132 800℃	0.132 800℃	0.132 1000℃
	0.18 1050℃	0.18 1000℃	0.18 1000℃	0.18 1000℃
Crushing Strength, MPa	0.5	0.5	0.5	0.5
Working Temperature, ℃	1000	1100	1260	1360
